3 degree slotted bridge pins

Nicely fitting bridge pins can make a noticeable improvement to the sound and appearance of a guitar. 3 degree bridge pins can be used as replacements on many production guitars (Taylor and Far Eastern instruments, for example) and were standard on pre-1994 Martins and pre-2002 Collings guitars. Some high-end luthiers also prefer 3 degree pins.

Bone or buffalo horn pins can produce a slightly brighter than wooden pins. Ebony is an all-time favourite, and cocobolo is ideal if you want a 'rosewood-like' look. A Central American hardwood, it turns much better than most rosewoods and is less prone to splitting in use.

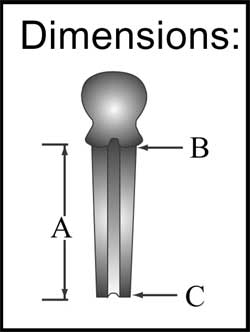

3 degree pin dimensions
3 degree pin dimensions

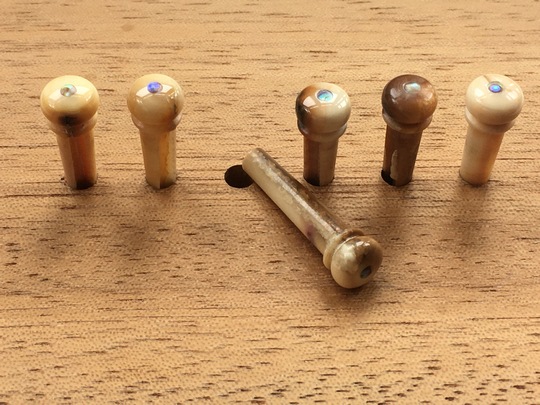

Buffalo horn, 3 degree, slotted, abalone dot
Buffalo horn, 3 degree, slotted, abalone dot
A: 0.944" 23.98mm
B: 0.208" 5.28mm
C: 0.169" 4.29mm
£

Buffalo horn, 3 degree, slotted, no dot
Buffalo horn, 3 degree, slotted, no dot
A: 0.944" 23.98mm
B: 0.208" 5.28mm
C: 0.169" 4.29mm
£

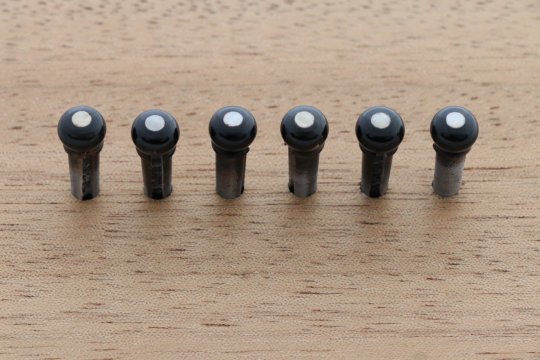

Buffalo horn, 3 degree, slotted, pearl dot
Buffalo horn, 3 degree, slotted, pearl dot
A: 0.944" 23.98mm
B: 0.208" 5.28mm
C: 0.169" 4.29mm
£

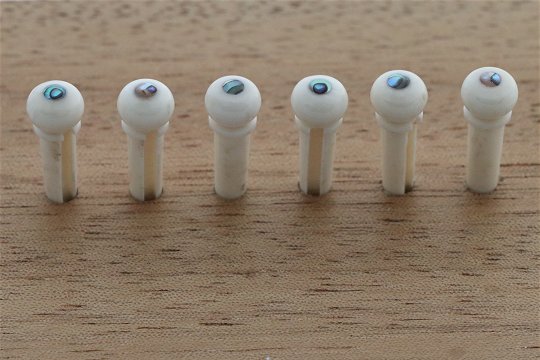

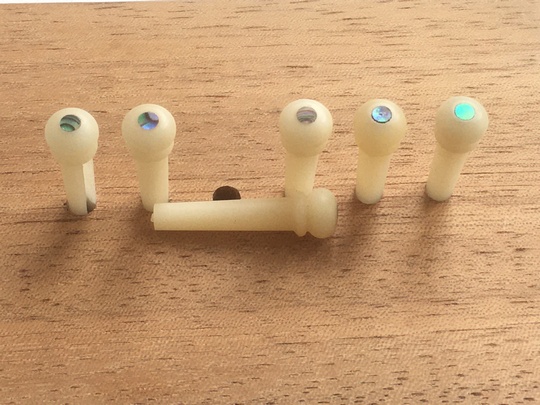

Bone, 3 degree, slotted, abalone dot
Bone, 3 degree, slotted, abalone dot
A: 0.944" 23.98mm
B: 0.208" 5.28mm
C: 0.169" 4.29mm
£

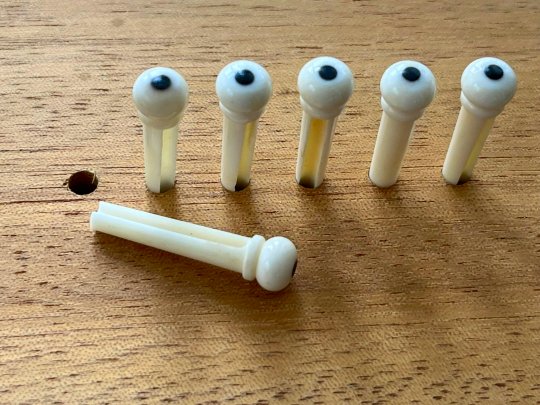

Bone, 3 degree, slotted, black dot
Bone, 3 degree, slotted, black dot
A: 0.944" 23.98mm
B: 0.208" 5.28mm
C: 0.169" 4.29mm
£

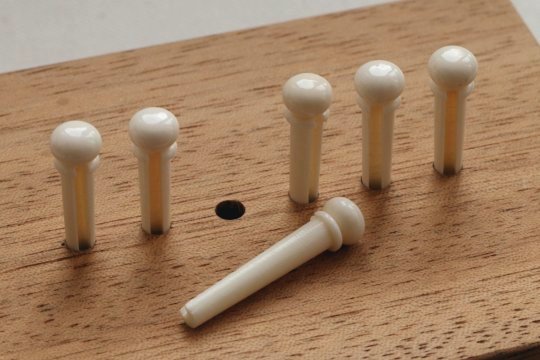

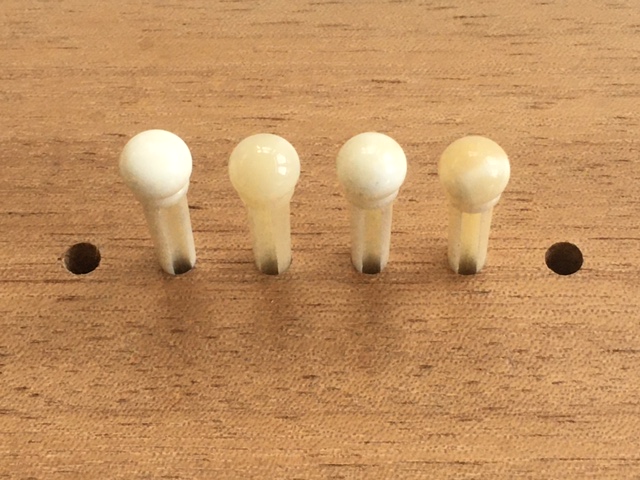

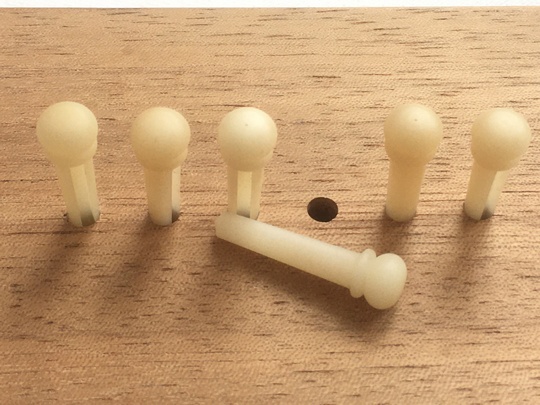

Bone, 3 degree, slotted, no dot
Bone, 3 degree, slotted, no dot
A: 0.944" 23.98mm
B: 0.208" 5.28mm
C: 0.169" 4.29mm
£

Cocobolo, 3 degree, slotted, no dot
Cocobolo, 3 degree, slotted, no dot
A: 0.944" 23.98mm
B: 0.208" 5.28mm
C: 0.169" 4.29mm
£

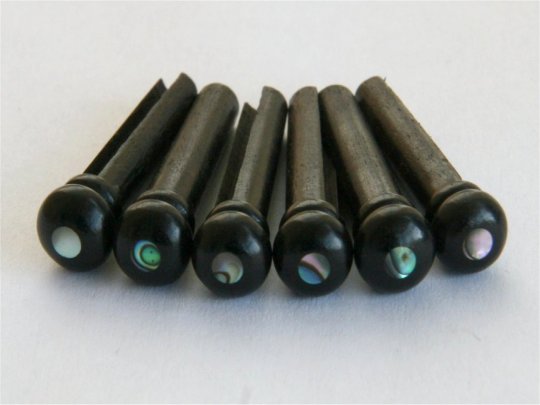

Ebony, 3 degree, slotted, abalone dot
Ebony, 3 degree, slotted, abalone dot
A: 0.944" 23.98mm
B: 0.208" 5.28mm
C: 0.169" 4.29mm
£

Ebony, 3 degree, slotted, no dot
Ebony, 3 degree, slotted, no dot
A: 0.944" 23.98mm
B: 0.208" 5.28mm
C: 0.169" 4.29mm
£

Ebony, 3 degree, slotted, pearl dot
Ebony, 3 degree, slotted, pearl dot
A: 0.944" 23.98mm
B: 0.208" 5.28mm
C: 0.169" 4.29mm
£
