Fender style nuts
Bleached and unbleached nuts in various standard Fender sizes. For unshaped nuts, all sizes are minimum measurements. Please note that the pre-shaped and slotted nuts will need final fitting to your guitar. They are not a 'glue it in and go' solution. But they do cut down on the donkey work and reduce the chances of making a mistake!
Fender style unbleached bone nut, shaped and slotted, 7.25" top and bottom radius
1-45/64" x 3/16" x 1/8"
(43.26mm x 4.75mm x 3.18mm)
7-1/4" (184.15mm) top and bottom radius
1-13/32" (35.56mm) string spread
(43.26mm x 4.75mm x 3.18mm)
7-1/4" (184.15mm) top and bottom radius
1-13/32" (35.56mm) string spread
£
Fender style unbleached bone nut, shaped and slotted, 7.25" top radius, flat bottom
1-45/64" x 3/16" x 1/8"
(43.26mm x 4.75mm x 3.18mm)
7-1/4" (184.15mm) top radius, flat bottom
1-13/32" (35.56mm) string spread
(43.26mm x 4.75mm x 3.18mm)
7-1/4" (184.15mm) top radius, flat bottom
1-13/32" (35.56mm) string spread
£
Fender style unbleached bone nut, shaped and slotted, 9.5" top and bottom radius
1-45/64" x 3/16" x 1/8"
(43.26mm x 4.75mm x 3.18mm)
9.5" (254mm) top and bottom radius
1-13/32" (35.56mm) string spread
(43.26mm x 4.75mm x 3.18mm)
9.5" (254mm) top and bottom radius
1-13/32" (35.56mm) string spread
£
Fender style unbleached bone nut, shaped and slotted, 9.5" top radius, flat bottom
1-45/64" x 3/16" x 1/8"
(43.26mm x 4.75mm x 3.18mm)
9.5" (254mm) top radius flat bottom
1-13/32" (35.56mm) string spread
(43.26mm x 4.75mm x 3.18mm)
9.5" (254mm) top radius flat bottom
1-13/32" (35.56mm) string spread
£
Fender style unbleached bone nut, shaped, slotted, 7.25" top and bottom radius, oversized width/height
1-45/64" x 13/64" x 9/64"
(43.00mm x 5.00mm x 3.5mm)
7.25" (184.15mm) top and bottom radius
(43.00mm x 5.00mm x 3.5mm)
7.25" (184.15mm) top and bottom radius
£

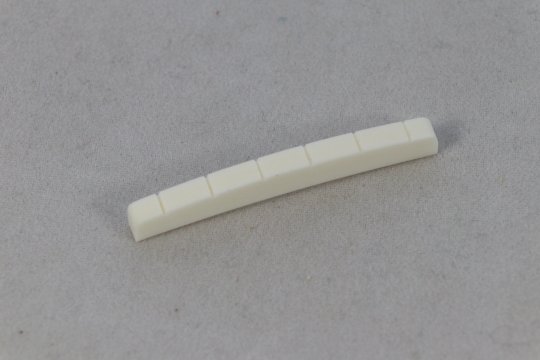

Fender style bleached bone nut, shaped and slotted, 7.25" top and bottom radius
1-45/64" x 3/16" x 1/8"
(43.26mm x 4.75mm x 3.18mm)
7-1/4" (254mm) top and bottom radius
1-13/32" (35.56mm) string spread
(43.26mm x 4.75mm x 3.18mm)
7-1/4" (254mm) top and bottom radius
1-13/32" (35.56mm) string spread
£

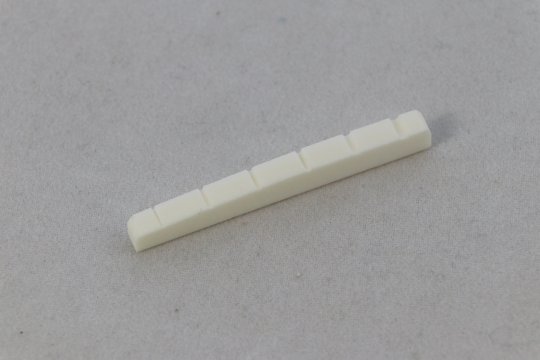

Fender style bleached bone nut, shaped and slotted, 7.25" top radius, flat bottom
1-45/64" x 3/16" x 1/8"
(43.26mm x 4.75mm x 3.18mm)
7-1/4" (254mm) top radius flat bottom
1-13/32" (35.56mm) string spread
(43.26mm x 4.75mm x 3.18mm)
7-1/4" (254mm) top radius flat bottom
1-13/32" (35.56mm) string spread
£

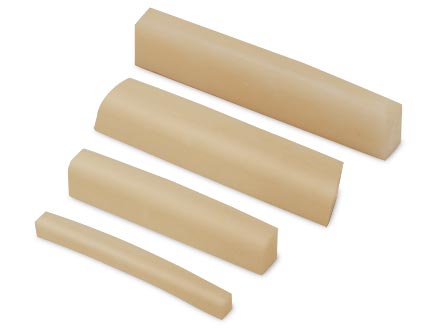

Fender style unbleached bone nut, shaped, unslotted, 7.25" top and bottom radius
1-45/64" x 3/16" x 1/8"
(43.26mm x 4.75mm x 3.18mm)
7.25" (184.15mm) top and bottom radius
(43.26mm x 4.75mm x 3.18mm)
7.25" (184.15mm) top and bottom radius
£
Fender style unbleached bone nut, shaped, unslotted, 9.5" top and bottom radius
1-45/64" x 3/16" x 1/8"
(43.26mm x 4.75mm x 3.18mm)
9.5" (254mm) top and bottom radius
(43.26mm x 4.75mm x 3.18mm)
9.5" (254mm) top and bottom radius
£
Guitar nut blank, for Fender, unbleached bone
1-7/8" x 9/32" x 1/8"
(43.63mm x 7.14mm x 3.18mm)
(43.63mm x 7.14mm x 3.18mm)
£
Guitar nut blank, for Fender, white (bleached) bone
1-7/8" x 9/32" x 1/8"
(43.63mm x 7.14mm x 3.18mm)
(43.63mm x 7.14mm x 3.18mm)
£

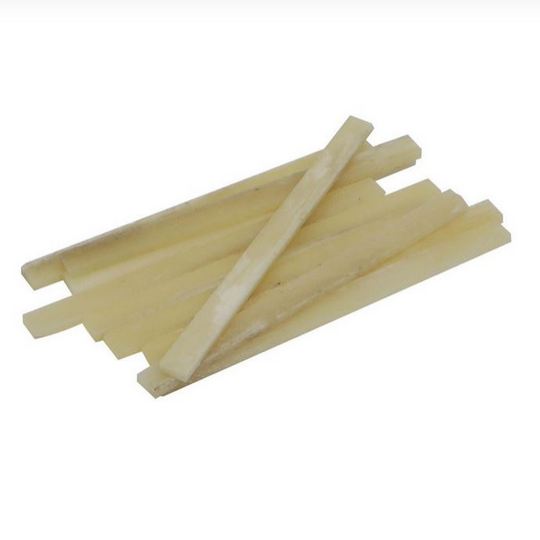

Shim for Fender style guitar nuts, unbleached bone (1 shim)
(suitable for flat bottomed nuts only)
(suitable for flat bottomed nuts only)
2" x 0.14" x 0.04"
(51mm x 3.5mm x 1mm)
(51mm x 3.5mm x 1mm)
£
