Martin style nuts
Bleached and unbleached nuts in various standard Martin sizes. For unshaped nuts, all sizes are minimum measurements. Please note that the pre-shaped and slotted nuts will need final fitting to your guitar. They are not a 'glue it in and go' solution. But they do cut down on the donkey work and reduce the chances of making a mistake! Note that some Martins have nuts with angled bottoms (parallel with the face of the headstock) - others have flat bottoms (parallel with the fingerboard).
Shaped and slotted unbleached bone, Martin 1-3/4" neck width, angle bottom
1-13/16" x 13/32" x 1/4"
(46.02mm x 10.29mm x 6.35mm)
18" (457.20mm) top radius
1-17/32" (38.86mm) string spread
£
Shaped and slotted unbleached bone, Martin 1-3/4" neck width, flat bottom
1-13/16" x 21/64" x 1/4"
(46.02mm x 8.59mm x 6.35mm)
18" (457.20mm) top radius
1-17/32" (38.86mm) string spread
£
Shaped and slotted unbleached bone, Martin 1-11/16" neck width, angle bottom
1-23/32" x 13/32" x 1/4"
(43.49mm x 10.29mm x 6.35mm)
18" (457.20mm) top radius
1-15/32" (37.21mm) string spread
£
Shaped and slotted unbleached bone, Martin 1-11/16" neck width, flat bottom
1-23/32" x 21/64" x 1/4"
(43.49mm x 8.59mm x 6.35mm)
18" (457.20mm) top radius
1-15/32" (37.21mm) string spread
£

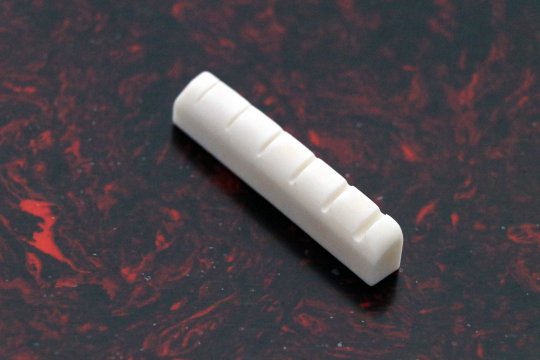

Shaped and slotted white (bleached) bone nut, suitable for many modern Martins and Far Eastern copies, flat bottom
1-11/16" long x 15/64" wide
(42.75mm long x 5.90mm wide)
Height at bass end: 11/32" (8.76mm)
Height at treble end: 5/16" (8.03mm)
18" (457.20mm) top radius
£

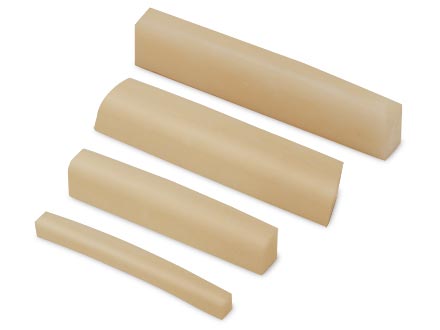

Shaped unbleached bone, Martin, 18" top radius, angled bottom, 1-13/16" length, unslotted
1-13/16" x 3/8" x 1/4"
(46.04mm x 9.53mm x 6.35mm)
18" (457.20mm) top radius
£
Shaped unbleached bone, Martin, 18" top radius, flat bottom, 1-13/16" length, unslotted
1-13/16" x 21/64" x 1/4"
(46.04mm x 8.3mm x 6.35mm)
18" (457.20mm) top radius
£
Guitar nut blank, Martin style, unbleached bone
2-3/16" x 7/16" x 1/4"
(55.56mm x 11mm x 6.35mm)
£

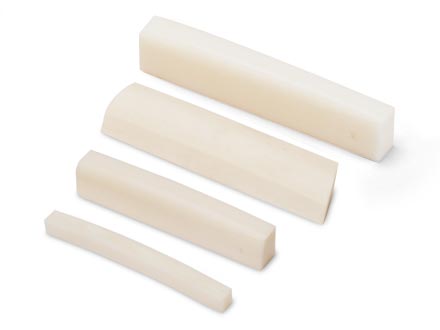

Guitar nut blank, Martin style, white (bleached) bone
2-3/16" x 7/16" x 1/4"
(55.56mm x 11mm x 6.35mm)
£
